• Professional shutter motor with mechanical limit for roller blinds, Windows, shops, Projection walls or blinds.
• The motor can be installed in your home, garage, office or work space
• Tubular motor diameter 35 mm with 40 mm adapters or tubular motor diameter 45 mm with 60 mm adapters.
• Including all the accessories for installation
• Designed for a quiet, quiet use
• 5 year warranty
• Instructions included

Tubular Motors Specifications:

40SW\25 Kg Lifting Capacity: Output speed: 14 rpm, Rated torque: 10NM, Nominal voltage: 230, Nominal Consumption: 116W, Nominal Current:0.49A, Running Time: 4 mins, Protection Index: IP44, Total length: 410 mm, Net Weight: 1.3kg

 40SW\30 Kg Lifting Capacity: Output speed: 14 rpm, Rated torque: 13NM, Nominal voltage: 230, Nominal Consumption: 116W, Nominal Current:0.49A, Running Time: 4 mins, Protection Index: IP44, Total length: 480 mm, Net Weight: 1.3kg

 60SW\25 Kg Lifting Capacity: Output speed: 15 rpm, Rated torque: 10NM, Nominal voltage: 230, Nominal Consumption: 112W, Nominal Current:0.49A, Running Time: 4 mins, Protection Index: IP44, Total length: 470 mm, Net Weight: 1.9kg

 60SW\45 Kg Lifting Capacity: Output speed: 15 rpm, Rated torque: 20NM, Nominal voltage: 230, Nominal Consumption: 145W, Nominal Current:0.64A, Running Time: 4 mins, Protection Index: IP44, Total length: 470 mm, Net Weight: 1.9kg

 60SW\60 Kg Lifting Capacity: Output speed: 15 rpm, Rated torque: 30NM, Nominal voltage: 230, Nominal Consumption: 191W, Nominal Current:0.83A, Running Time: 4 mins, Protection Index: IP44, Total length: 560 mm, Net Weight: 2.2kg

• Professional shutter motor with electronic limit for roller blinds, Windows, shops, Projection walls or blinds.
• The motor can be installed in your home, garage, office or work space
• Tubular motor diameter 35 mm with 40 mm adapters or tubular motor diameter 45 mm with 60 mm adapters.
• Including all the accessories for installation
• Designed for a quiet, quiet use
• 5 year warranty
• Instructions included

PALMAT great package deal with wifi curtain switch and a tubular roller motor which is suitable for home, office and commercial use. The motor is extremely quiet and has been tested for more than 15, 000 motion cycles.

Each tubular roller motor comes with a 5-year warranty and comes with simple instructions in English.

PALMAT wifi curtain switch is compatible with Amazon Alexa and Google Home so you get a remote and a voice activation option so you are covered for all options.  No need to find a remote or get up to turn on your appliances. Let your voice manage the whole house but with the option, if you prefer the quiet alternative, just to use the remote control or your smartphone or tablet.

The switch features a high-quality crystal tempered glass panel design which is strong and scratch-resistant.

The switch is easy to set up - just download the smartlife app and follow the instructions. Connect to local wifi and configure. Using the smartlife app you can schedule your home by setting a timer to turn on the smart switch on 8:00, turn off at 21:00 for example; you can also set the smartlife app to automatically control your roller shutter at sunrise and sunset.

The control will work with curtains, shutters, blinds or roller shutter.

The wired in switch needs to have a neutral wire so may not suit older properties. It is a single live wire control which is easy to install and you can replace any old switch directly.

Each switch comes with an instruction manual or you can download instructions using the QR code.

Tips for success include: using wifi 2-4G (it is not compatible with 5G) and make sure there are no special characters in your wifi name and password (only letters or numbers.

CURTAIN SWITCH – SPECIFICATION

• Dimension 86 x 86 x 36.7mm
• Operating voltage 240VAC/50Hz~60Hz
• Rated load: less than 1500W/Gang
• Life long: more than 100, 000 times
• Compatible with ioS and Android

TUBULAR MOTOR  – SPECIFICATION

• Control type: Mechanical Limit Switch
• Output speed: 14 rpm
• Rated torque: 10NM
• Nominal voltage: 230v
• Nominal Consumption: 116W
• Nominal Current:0.49A
• Lifting Capacity: 25kg
• Running Time: 4 mins
• Protection Index: IP44
• Total length: 480 mm
• Maximum Turns: 27 turn
• Net Weight: 1.30kg

• Professional shutter motor with mechanical limit for roller blinds, Windows, shops, Projection walls or blinds.
• A high quality receiver that will work with European Wi-Fi technology to enable you to open and close your roller blind shutter using your mobile phone
• Comes with a free app that is compatible with both iOS on App Store or Google Store for Android
• Option to schedule open and close function, partial open/close and to open a number of shutters together
• Watch the shutter open or close at any given time through the app
• Control the shutter from anywhere in the world using the app, can also be controlled by wall button if required
• Wi-Fi Receiver Sizes: 39X42X24 mm
• Tubular motor diameter 35 mm with 40 mm adapters or tubular motor diameter 45 mm with 60 mm adapters.
• Including all the accessories for installation
• Designed for a quiet, quiet use
• 5 year warranty
• Instructions included

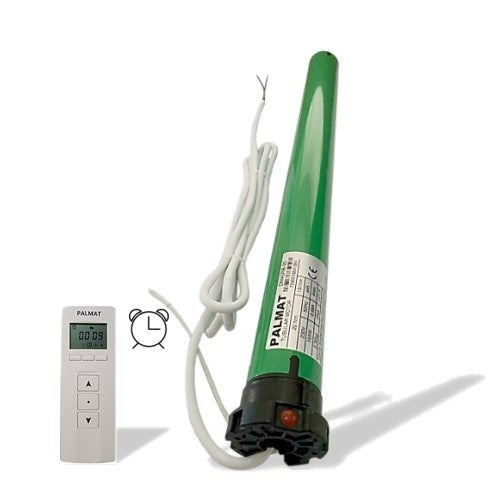

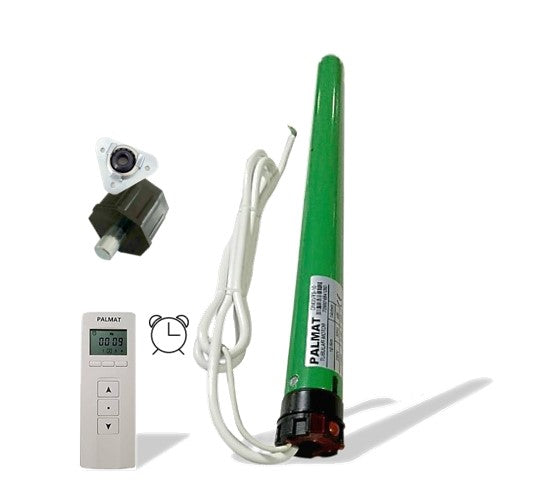

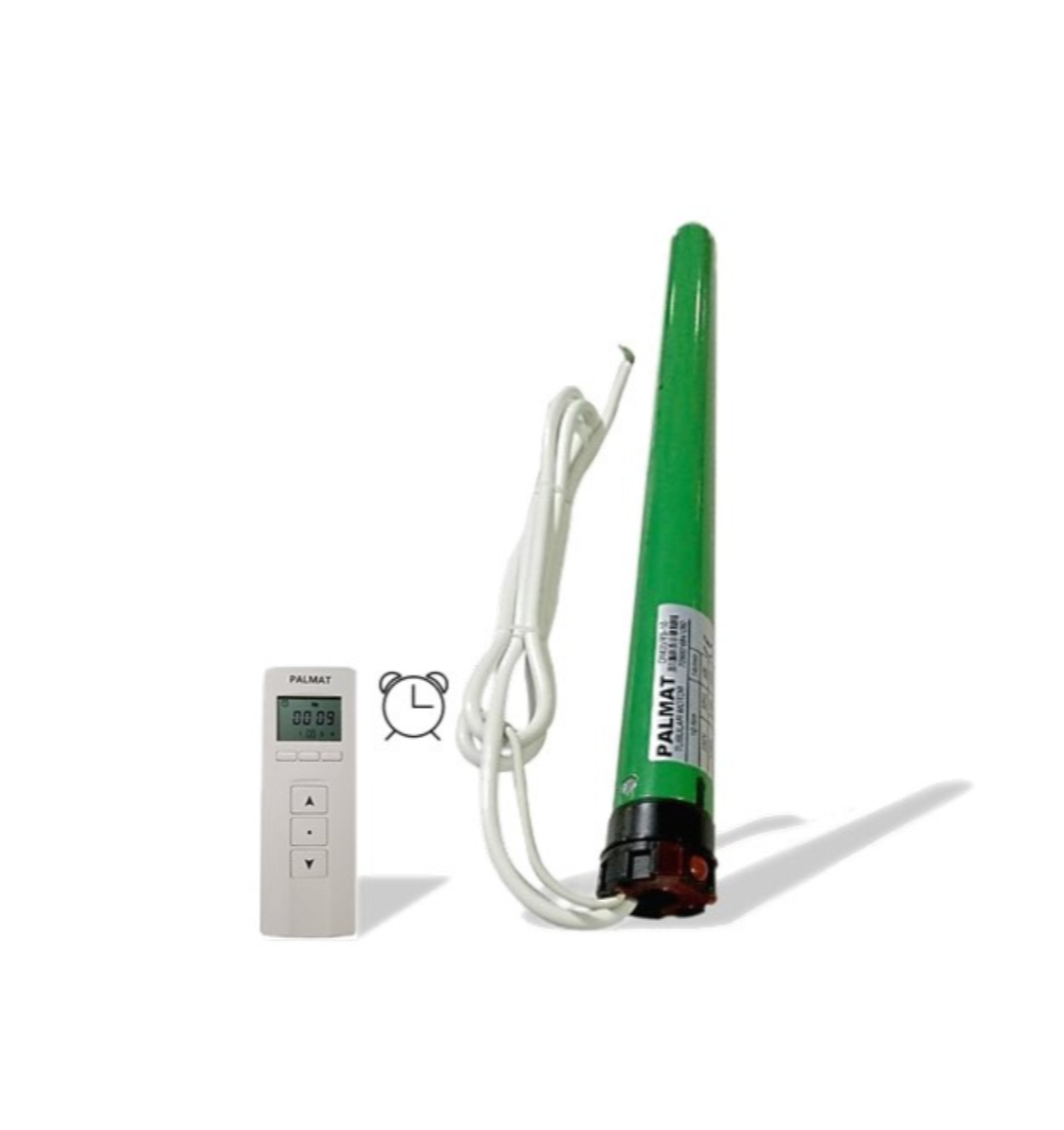

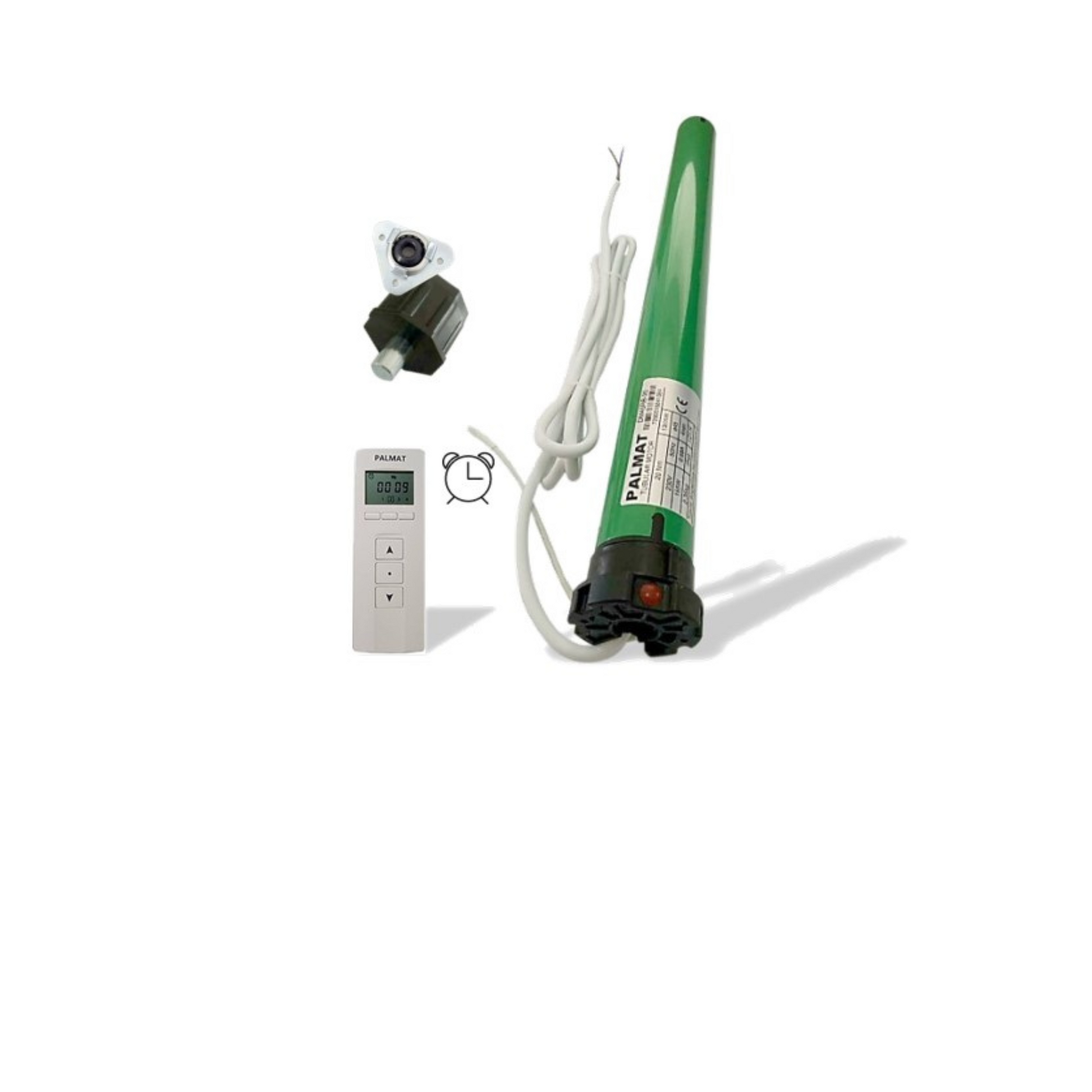

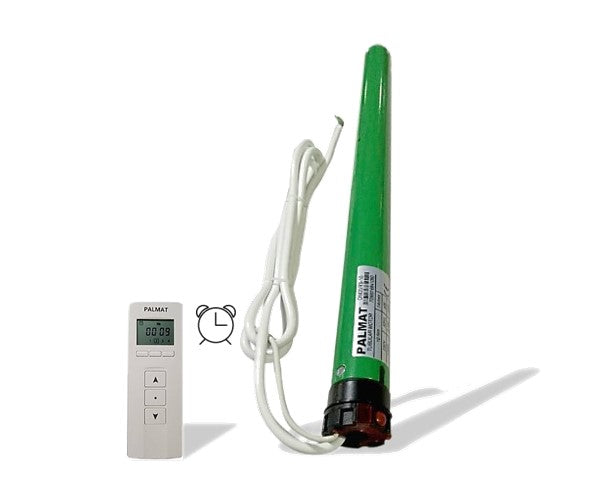

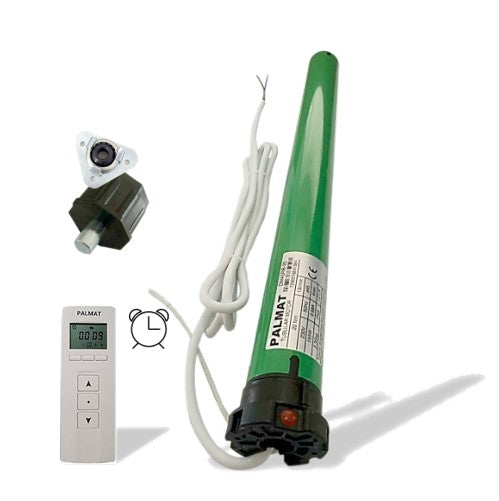

• Professional shutter motor with remote control for roller blinds, Windows, shops, Projection walls or blinds up to 45 kg in your home, garage, office or work space
• Tubular motor diameter 35 mm with 40 mm adapters or tubular motor diameter 45 mm with 60 mm adapters.

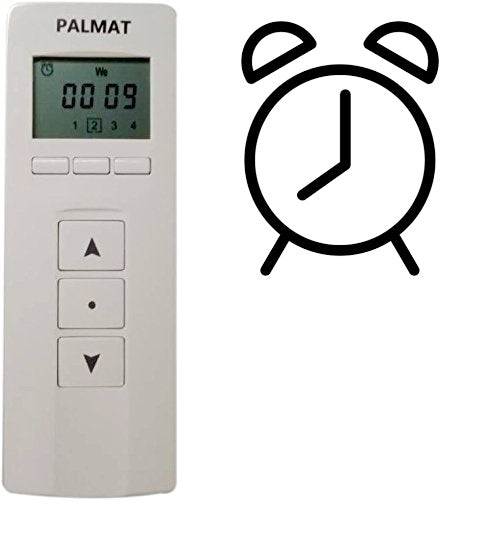

• Including a single remote control for activating the shutters with crystal magnetic wall holder
• Designed for a quiet, quiet use
• 5 year warranty
• Instructions included
