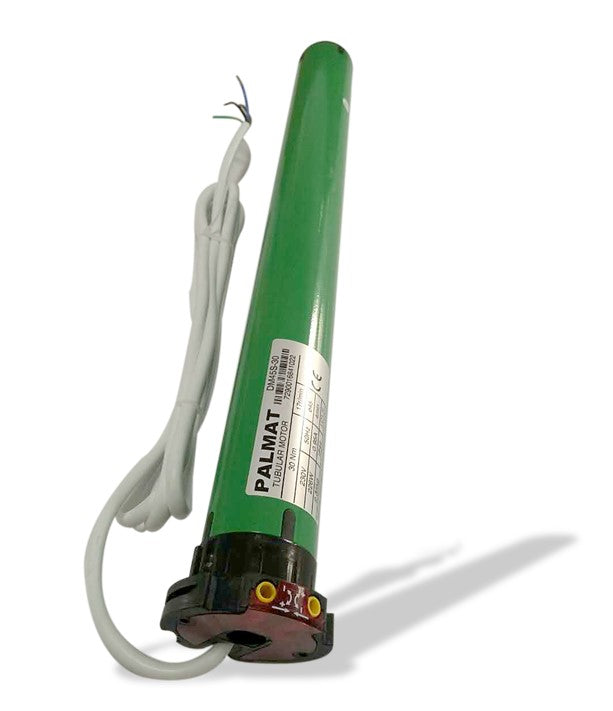

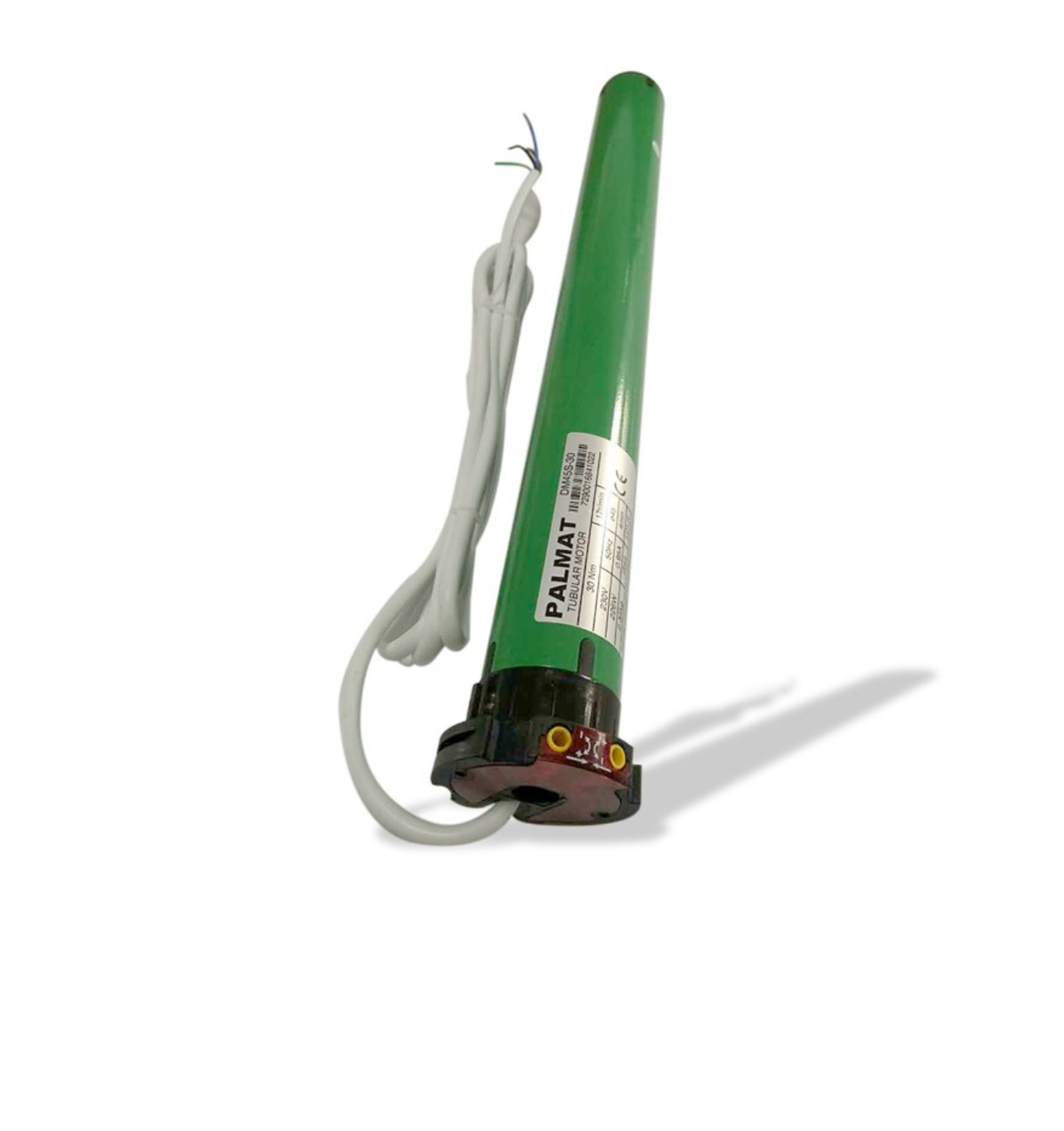

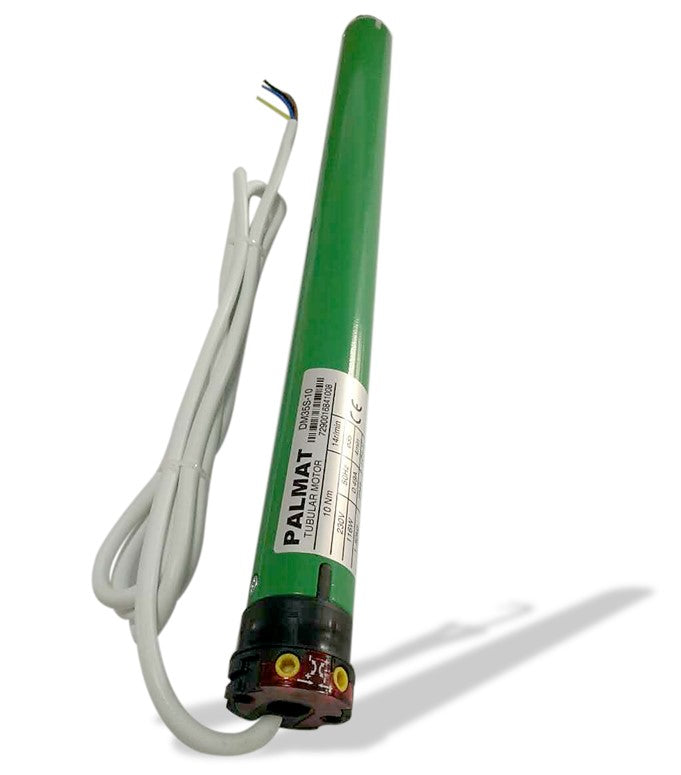

PALMAT Tubular Roller Shutter Motor With Mechanical Limit
PALMAT Tubular Roller Shutter Motor With Mechanical Limit
SKU:4200010

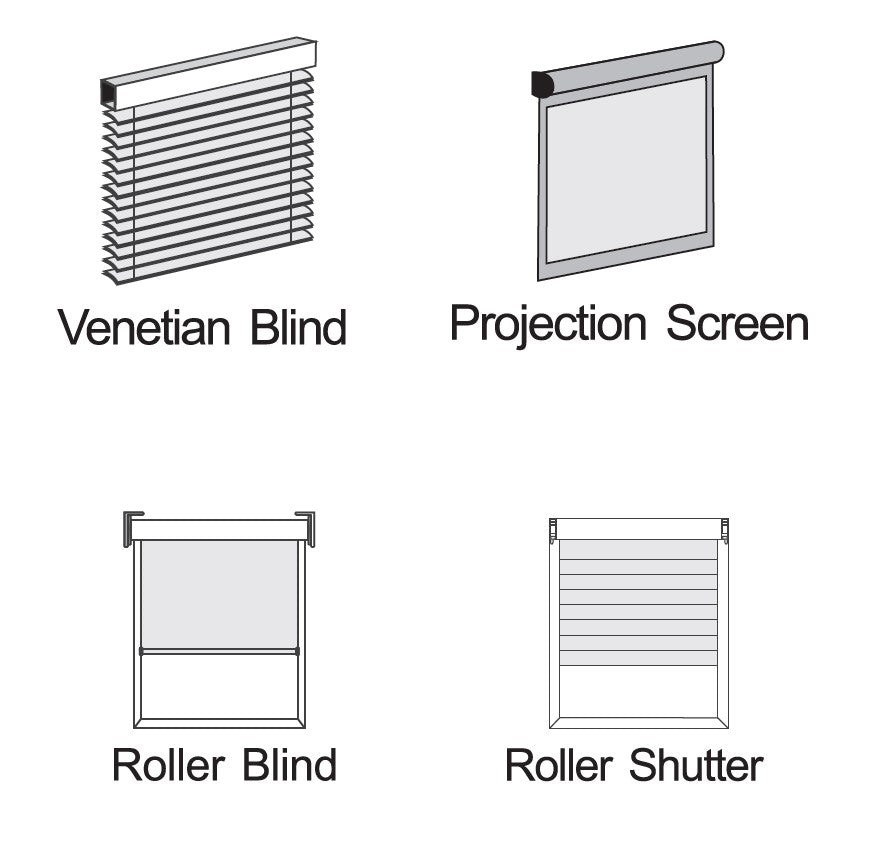

- Professional shutter motor with mechanical limit for roller blinds, Windows, shops, Projection walls or blinds.
- The motor can be installed in your home, garage, office or work space

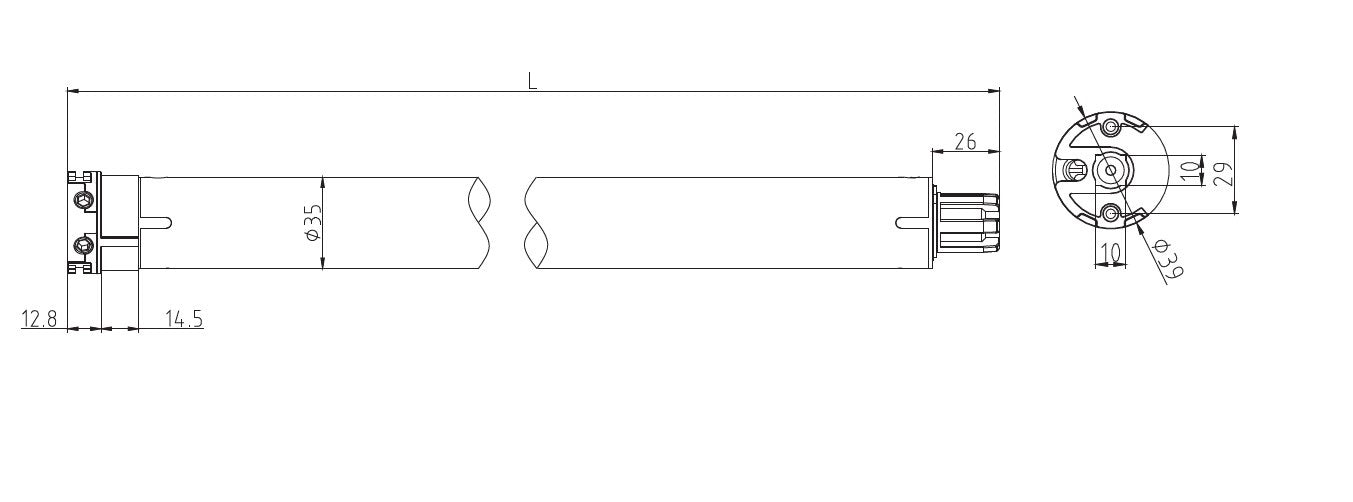

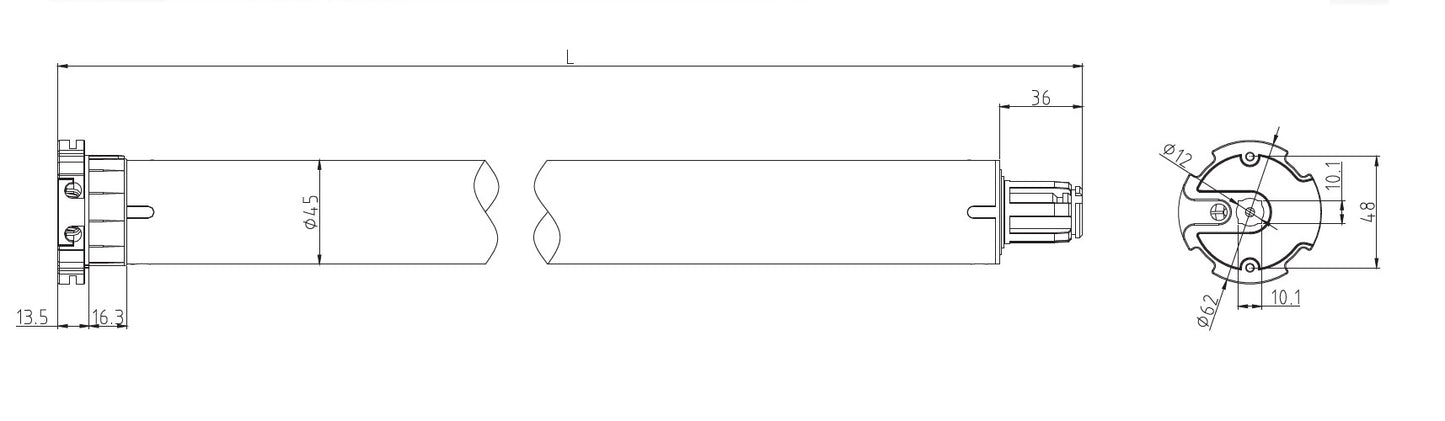

- Tubular motor diameter 35 mm with 40 mm adapters or tubular motor diameter 45 mm with 60 mm adapters.

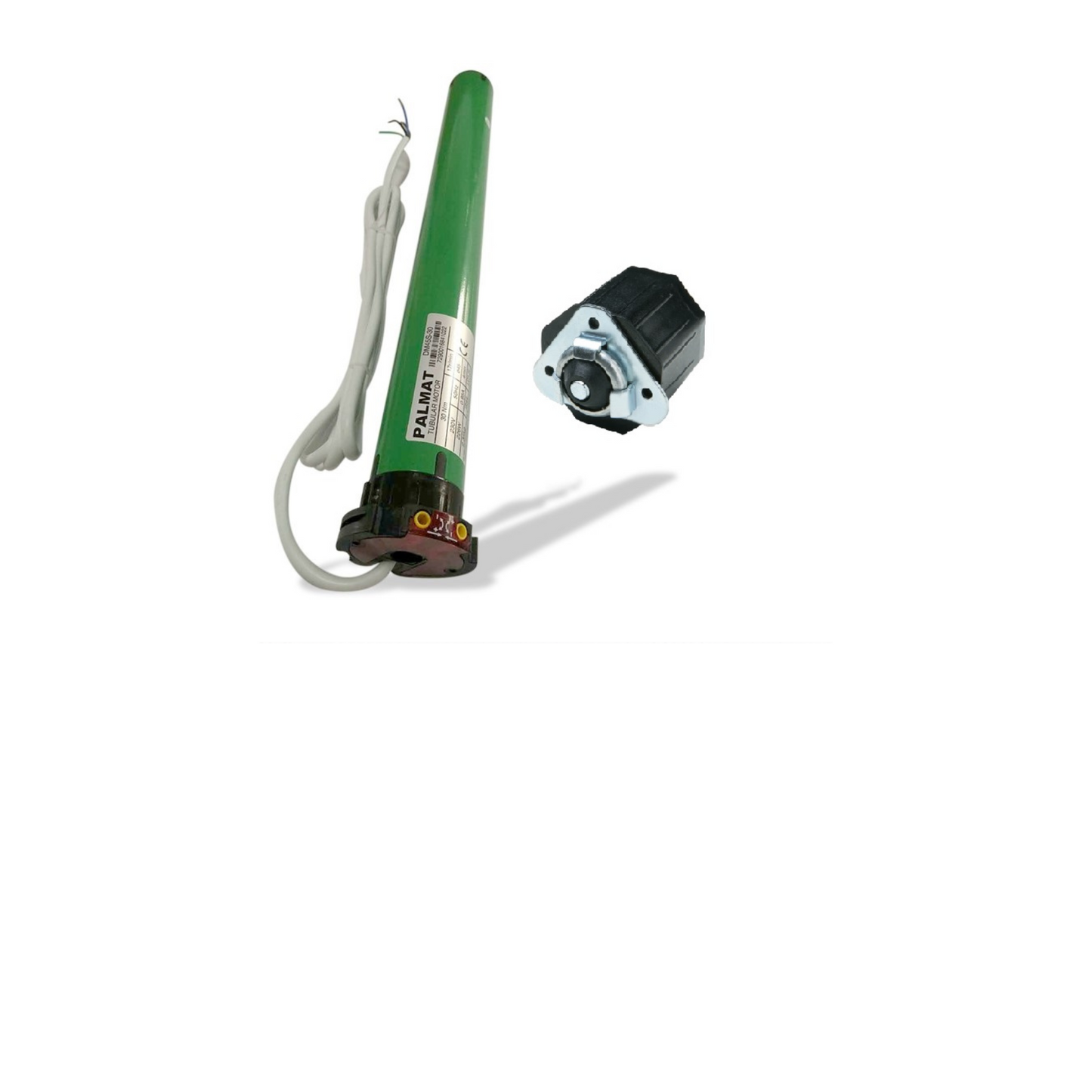

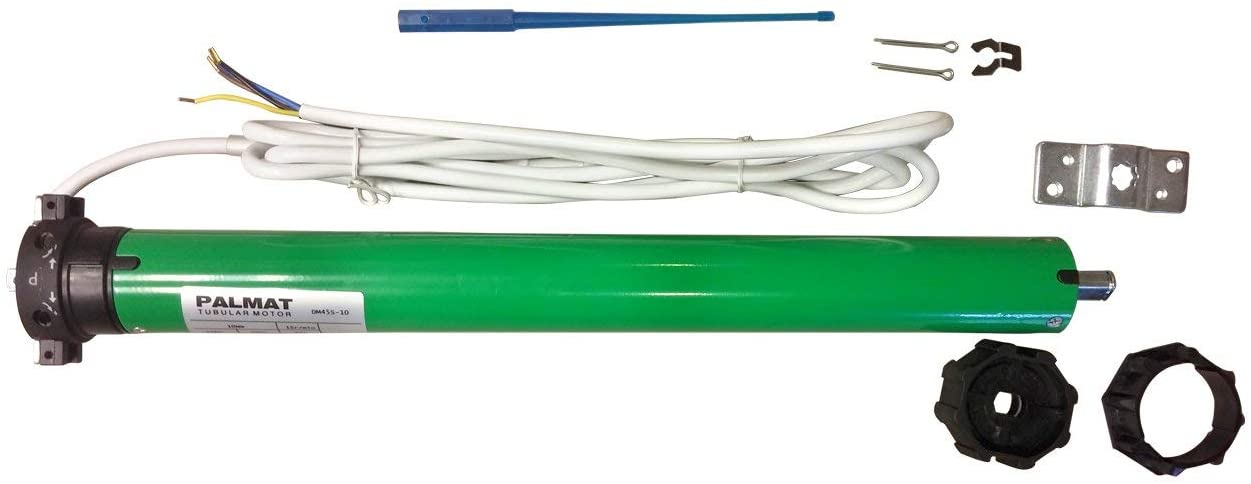

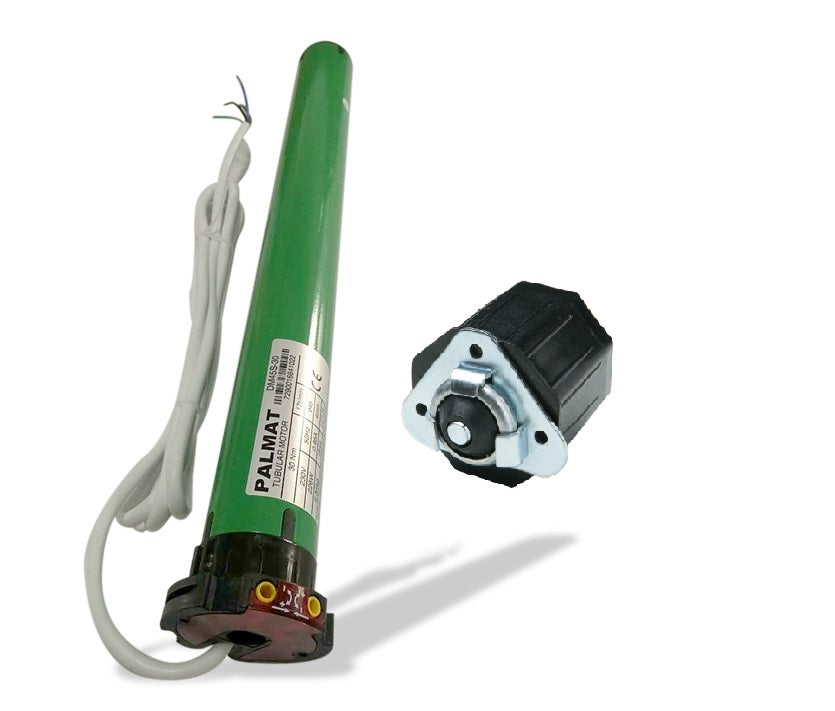

- Including all the accessories for installation
- Designed for a quiet, quiet use
- 5 year warranty
- Instructions included

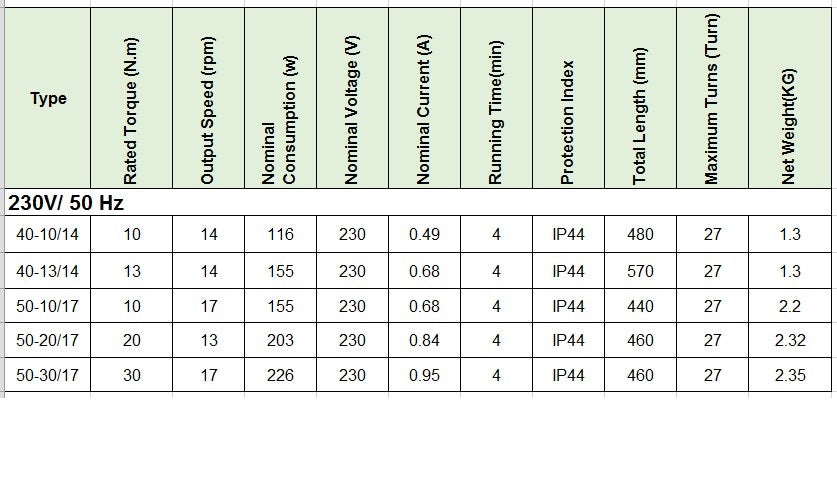

Tubular Motors Specifications:
40SW\25 Kg Lifting Capacity: Output speed: 14 rpm, Rated torque: 10NM, Nominal voltage: 230, Nominal Consumption: 116W, Nominal Current:0.49A, Running Time: 4 mins, Protection Index: IP44, Total length: 410 mm, Net Weight: 1.3kg
40SW\30 Kg Lifting Capacity: Output speed: 14 rpm, Rated torque: 13NM, Nominal voltage: 230, Nominal Consumption: 116W, Nominal Current:0.49A, Running Time: 4 mins, Protection Index: IP44, Total length: 480 mm, Net Weight: 1.3kg
60SW\25 Kg Lifting Capacity: Output speed: 15 rpm, Rated torque: 10NM, Nominal voltage: 230, Nominal Consumption: 112W, Nominal Current:0.49A, Running Time: 4 mins, Protection Index: IP44, Total length: 470 mm, Net Weight: 1.9kg
60SW\45 Kg Lifting Capacity: Output speed: 15 rpm, Rated torque: 20NM, Nominal voltage: 230, Nominal Consumption: 145W, Nominal Current:0.64A, Running Time: 4 mins, Protection Index: IP44, Total length: 470 mm, Net Weight: 1.9kg
60SW\60 Kg Lifting Capacity: Output speed: 15 rpm, Rated torque: 30NM, Nominal voltage: 230, Nominal Consumption: 191W, Nominal Current:0.83A, Running Time: 4 mins, Protection Index: IP44, Total length: 560 mm, Net Weight: 2.2kg
